Hydraulic diagram section is a place where we become troubleshooter professionals.

Begin with basic hydraulic schematics and step by step to reach more advance and complex diagrams.

Nowadays I revise my old article, service report and I remember my experiences on board commercial or offshore vessels as hydraulic troubleshooter

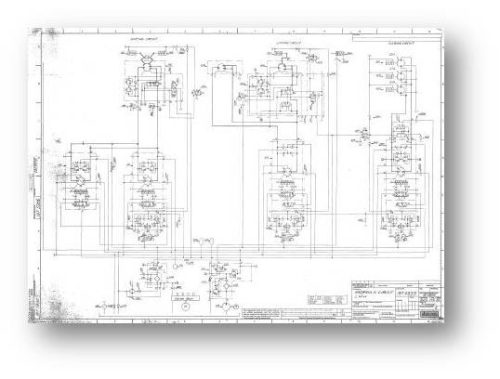

In order to check the function of a hydraulic machine we need a diagram. Consequently there are various type of drawings, one of which I want to discuss in this section is the hydraulic diagram. For the purpose to make a hydraulic circuit understandable, each element in the installation is represent by a specific symbol.

Therefore a diagram consists of a number of symbols. To ensure that everyone can read the symbols, international standard symbols are use.

The symbols not tell us about the actual dimension, technical design, how is make the device, they only represent a specific function.

The technique of reading the schematic is thinking in a functional manner. Furthermore the important thing is the function it perform not the actual construction or the basic operation of the component.

When a machine malfunction identified the function which is not working and will be obvious which component is causing trouble.

Table of Content

Hydraulic Circuit -Cooling

I’ll open this section with a simple and efficient diagram. Inspire from Hägglunds Deck Crane and is about cooling of hydraulic deck crane.

Unload accumulator in a hydraulic diagram

In any hydraulic system is very important to know to unload the accumulator. When system is under repair must remember if one or more accumulators are in the system and is necessary to unload them to avoid any incidents.

Pilot pressure reducing valve circuit

Here the pilot pressure reducing valve circuit is shown in diagram form.

Pressure reducing valve are the only pressure control valves that are normally open. The valves may be either direct operated or pilot operated.

Hydraulic press

Hydraulic press is operated by a low pressure pump and a high pressure pump. The pumps ensure rapid piston movement.

Motor Regulator

Function of the control regulator valve connect on the winch hydraulic motor. The regulator valve install on the motor of the winch keeps the power constant.

Crane Stabilizing Winch

The hydraulic system of the stabilizing winch is connect to the hoisting winch system of the crane.

Docking head diagram

One important part of the LARS system is docking head.  Through docking passes the wire rope form umbilical winch which holds the TMS/ROV locked mechanically and hydraulically.

Differential unloading

Differential unloading relief valve system is use to charge the accumulator to its maximum pressure through the relief valve and hold that pressure until its required.

Meter-out and Meter-in

Will be presented meter out and meter in circuit.

Adjusting position of piston accumulator

Adjust the position of piston accumulator one of an operating sequence of CT device system.

Feed pressure circuit

The task of the feed pump is to fill the circuit with oil when starting the system.

Fail Safe Hydraulic Brake

During normal operation hydraulic pressure keeps the discs within the brake case separated, allowing shaft rotation. This operation is called fail safe brake.

Hydraulic release multi disc brake

Winches and slew machinery are equip with a fail safe brake. In case of hose or pipe failure or pressure drops suddenly the brakes are automatically apply and by a pressure device the equipment is stop.
