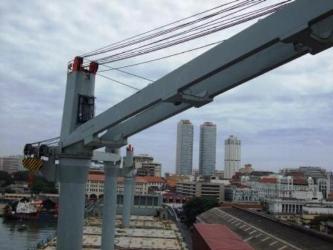

Luffing winch operates the crane jib
Secured the hook block and started to lift the jib with a shore crane. Try to bring the hook in proper condition. In this time the crane operator, release the hoisting wire. The hook block comes to proper condition but all the wire ropes for hoisting and luffing are out of wire sheaves.
Arrange the luffing wire on the sheaves and secured the wire rope on the luffing drum. Run the winch till wire rope pass thru the sheaves (middle and top sheaves) and entered inside the crane near to drum. The jib needs to be lifted with shore crane.
Maintenance an important job to eliminate malfunction in the hydraulic system.
Repair crane jib
Secure the jib by attached 2 long ropes to the end of jib and hold it and lifted the jib by the shore crane. In this time the operator run the winch and pulling the luffing wire to the luffing drum. Loosen the bolt that holds the limit switch box so much that the coupling /gear wheel for limit switch box and wire drum divides.
Always when working to the crane either maintenance, troubleshooting and repair crane jib follow procedures stated in manual of crane.
Therefore, attached the wire rope end around to the drum by the wire rope clamps and tighten the bolts. After some numbers of revolutions of wire on the drum the jib was lifted to a safety level. Place the jib in the rest position.
Furthermore carry out visual inspection on the crane’s jib. Climb near the crane with a basket and checked the condition of the jib. Inspected the end jib and found the wire sheave guards broken. Checked the first dent where the jib rest on the container and found smooth and not sharp dent it has a reasonable depth. Additionally condition of the second dent found it more sharp and dangerous.
Hoisting wire is in bad conditions. The crane is not operational.
- Luffing winch hold, lift and lowering the crane boom via the wire rope and sheaves;
- When in doubt during repair check the Maker book and follow the stated procedure ;
- Good reporting is a very important tool to solve the problem;
- Communication between the people involved is essential for a good job;
- Check the defect carefully and if is a safety issue be conclusive and stop the operation of the equipment.
